Types of Industrial Steam Boilers and Their Applications

introduzione

In modern industries, steam is a core utility used for heating, processing, e produzione di energia. Choosing the right caldaia a vapore industriale is crucial to meet process requirements, control costs, and comply with environmental rules. This guide explains the main boiler types, how they operate, and the industrial applications best suited to each type.

What Is an Industrial Steam Boiler?

UN caldaia a vapore industriale is a pressure vessel that heats water to produce steam for industrial processes. Typical boiler systems include a furnace for combustion (or electrical heating), heat-exchange surfaces, and a drum or shell to collect steam. Steam is used for process heating, sterilizzazione, driving turbines, essiccazione, and many other applications.

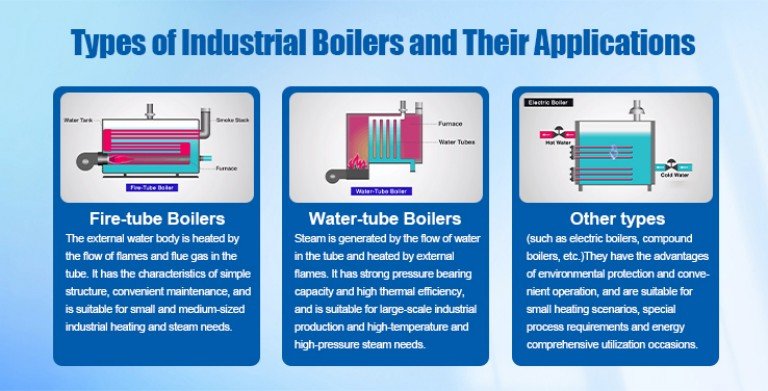

Main Types of Industrial Steam Boilers

1. Caldaie a tubi di fumo

Fire-tube boilers pass hot combustion gases through tubes surrounded by water. Heat transfers from the gas to the water, produrre vapore.

• Vantaggi: Simple design, easy maintenance, lower capital cost.
• Limitations: Lower pressure/steam capacity compared with water-tube designs.
• Typical applications: Small to medium-size plants, trasformazione alimentare, laundries, commercial heating.

2. Caldaie a tubi d'acqua

Water-tube boilers flow water through tubes heated externally by combustion gases. They handle higher pressures and larger steam volumes.

• Vantaggi: High pressure and capacity, fast steam generation, improved safety at high pressure.
• Limitations: Higher initial cost and more complex maintenance.
• Typical applications: Power plants, chemical and petrochemical industries, pulp & cartiere.

3. Boiler del vapore elettrico

Electric boilers use electric resistance or electrode heating to generate steam instead of burning fuel.

• Vantaggi: Zero combustion emissions on site, compact, operazione tranquilla.
• Limitations: Operating cost depends on electricity price; less suitable where electricity is expensive.
• Typical applications: Ospedali, Laboratorie, pharmaceutical and food industries where clean steam and emissions-free operation are required.

4. Biomass Steam Boilers

Biomass boilers burn organic fuels (wood chips, pellet, residui agricoli) to produce steam.

• Vantaggi: Renewable fuel source, potentially lower net CO₂ footprint, can use local waste streams.
• Limitations: Fuel handling and storage complexity; variable fuel quality.
• Typical applications: Agricultural processing, district heating with renewable targets, sustainable manufacturing sites.

5. Gas & Oil-Fired Boilers

These boilers combust natural gas, diesel, or heavy fuel oil to generate steam and are widely used across industries.

• Vantaggi: Alta efficienza termica, fast startup, mature technology.
• Limitations: Fuel cost volatility; emissions must be managed per regulations.
• Typical applications: Manufacturing plants, raffinerie, cibo & beverage processing, textile mills.

Comparing Boiler Types — Key Considerations

When selecting a boiler, compare types by:

• Steam capacity & pressione required by process equipment.
• Disponibilità di carburante & costo (gas, olio, biomassa, elettricità).
• Efficienza & operating cost, including potential for waste heat recovery.
• Maintenance complexity and local technical support capability.
• Ambientale & emissions regulations in your jurisdiction.

Industrial Applications of Steam Boilers

Steam boilers serve diverse industries. Typical applications include:

• Generazione di energia: Water-tube boilers feed steam turbines in thermal power plants.
• Cibo & beverage: Sterilization, cucinando, drying and process heating.
• Tessile & paper: Steam for dyeing, essiccazione, pulp processing.
• Chimico & petrolchimico: Process heating, distillazione, reaction control.
• Farmaceutico & Assistenza sanitaria: Clean steam for sterilization and controlled processes.

How to Choose the Right Industrial Steam Boiler

1. Assess process steam demand: Calculate peak and average steam loads (kg/h or lb/h).
2. Determine pressure & steam quality: Some processes require superheated or very dry steam.
3. Select fuel strategy: Evaluate fuel cost, affidabilità, and sustainability goals (per esempio., biomass or electrification).
4. Consider space & installation constraints: Boiler room size, access, and stack/venting requirements.
5. Plan for maintenance & spare parts: Local service capability reduces downtime risk.
6. Factor in emissions compliance: Emission controls or low-NOx options may be required.

The Future of Industrial Steam Boilers

Industrial boilers are evolving with a focus on efficiency and sustainability. Key trends include:

• Waste heat recovery & economizers to capture exhaust energy.
• Low-emission burners and exhaust treatment to meet stricter air quality rules.
• Integration with renewables (biomass co-firing, solar thermal preheat).
• Digital monitoring & IoT for predictive maintenance and performance optimization.

Conclusione

Choosing the right caldaia a vapore industriale depends on your process needs, fuel strategy, space, and regulatory environment. Fire-tube boilers fit smaller operations, water-tube designs suit high-pressure, high-capacity needs, electric boilers offer clean on-site steam, and biomass or gas/oil-fired units provide flexibility based on fuel availability. Carefully evaluating demand, efficienza, and lifecycle costs will help you select a boiler that delivers reliable performance and the best return on investment.

Se hai bisogno, Si prega di contattarci a tuo piacimento.
