Steam Boiler Explained: How It Works, Types, Efficiency & Applications (2026 Guide)

What you’ll learn in this guide: An expert breakdown of steam boiler mechanics, component functions, type comparisons, and actionable tips to optimize your system’s efficiency.

Steam boilers are the unsung heroes of modern infrastructure, driving everything from heavy manufacturing and electrical grids to commercial heating systems. Whether you are running a food processing plant, managing a hospital, or upgrading a facility, understanding these thermal powerhouses is key to reducing operational costs.

In this comprehensive guide, we will break down the engineering principles behind steam boilers, compare fire-tube vs. water-tube designs, and share industry best practices for safety and efficiency.

What Is a Steam Boiler?

Section Overview: This section defines a steam boiler as a closed-loop thermodynamic vessel designed to convert water into high-energy thermal steam.

At its core, a steam boiler is a pressurized vessel that applies thermal energy to water until it vaporizes into steam. This steam acts as an incredibly efficient vehicle for heat transport, moving through piping systems to deliver massive amounts of energy wherever it is needed.

Unlike standard water heaters, steam boilers work under intense pressure to generate dry or saturated steam, making them indispensable for high-demand industrial processes and large-scale heating.

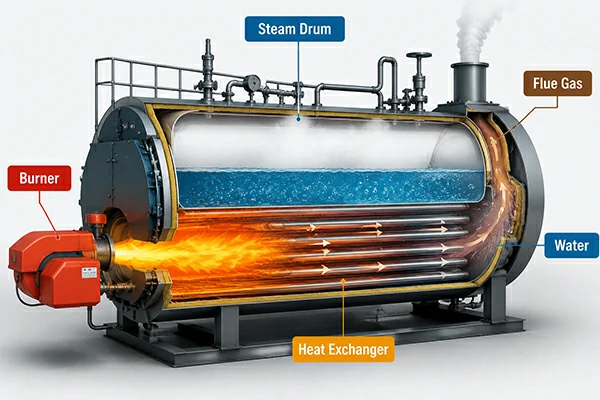

Key Components of an Industrial Steam Boiler

Section Overview: A quick directory of the mechanical and structural parts that cooperate to safely generate steam.

To appreciate how a boiler operates, you need to know what happens inside the chassis:

• Burner: The combustion engine of the system, mixing fuel (natural gas, oil, or biomass) with air to ignite a controlled flame.
• Combustion Chamber (Firebox): The insulated zone where the fuel burns, generating temperatures that often exceed 1000°C.
• Heat Exchanger: The thermal bridge where heat from combustion gases is transferred to the cooler water without them mixing.
• Boiler Drum/Shell: The high-strength pressure vessel holding the water and acting as the collection chamber for the rising steam.
• Control System: The digital or mechanical “brain” that modulates fuel flow, monitors internal pressure, and regulates water levels.

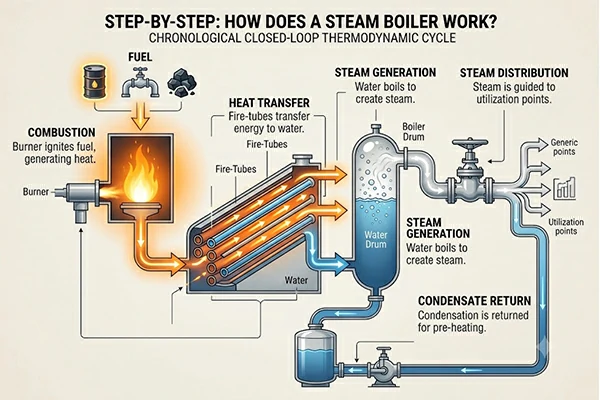

Step-by-Step: How Does a Steam Boiler Work?

Section Overview: A chronological walk-through of the closed-loop thermodynamic cycle inside a working steam boiler.

The process of generating steam follows a precise, continuous cycle designed to maximize thermal capture:

• Fuel Ignition & Combustion
  The burner ignites the fuel source, producing hot flue gases inside the combustion chamber.
• Thermal Heat Transfer
  These high-temperature gases travel through the heat exchanger (tubes), transferring their thermal energy directly into the surrounding water.
• Phase Change (Vaporization)
  As water absorbs heat, it reaches its boiling point. Latent heat changes the liquid water into steam, which naturally rises to the top of the boiler drum.
• Distribution & Utilization
  The accumulated steam builds pressure and exits through the main steam valve, traveling through facility piping to power turbines, heat exchangers, or jackets.
• Condensation & Return Loop
  After doing its job, the steam cools down, condenses back into liquid water (condensate), and is pumped back into the boiler as pre-heated feedwater to repeat the cycle.

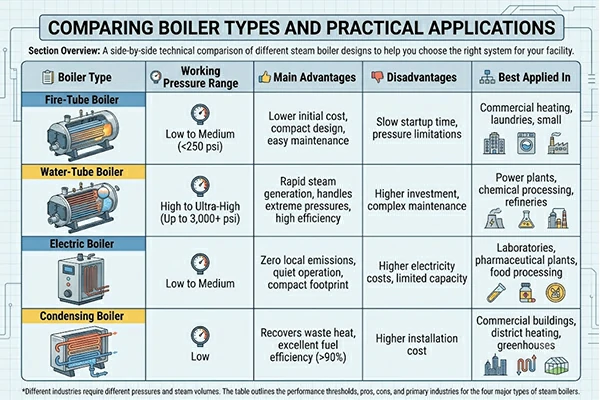

Comparing Boiler Types and Practical Applications

Section Overview: A side-by-side technical comparison of different steam boiler designs to help you choose the right system for your facility.

Different industries require different pressures and steam volumes. The table below outlines the performance thresholds, pros, cons, and primary industries for the four major types of steam boilers.

Optimizing Boiler Efficiency and Safety

Section Overview: Industry strategies and safety mechanisms required to lower fuel consumption and eliminate mechanical risks.

Operating a steam boiler requires balancing maximum fuel economy with strict safety standards.

Efficiency Improvements

• Install an Economizer – Captures waste heat from flue gases to preheat feedwater, reducing fuel consumption by approximately 5–10%.
• Automated Continuous Blowdown – Prevents scale buildup while minimizing unnecessary energy loss.
• Modulating Burners – Continuously adjust the flame according to steam demand, preventing short cycling and reducing fuel waste.

Essential Safety Features

Safety Reminder: Steam boilers operate under high pressure. Proper safety devices and routine inspections are essential.

• Pressure Relief Valves (PRVs) – Automatically release excess steam if pressure exceeds safe limits.
• Low-Water Cutoffs (LWCO) – Shut down the burner immediately if the water level becomes dangerously low.
• Chemical Water Treatment – Prevents corrosion, scale formation, and extends equipment lifespan.

Choosing the Right Steam Boiler for Your Business

Section Overview: Before purchasing a steam boiler, evaluate the following factors to maximize long-term return on investment.

• Total Steam Demand – Size the boiler based on your facility’s peak steam consumption.
• Fuel Availability & Operating Cost – Compare natural gas, diesel, biomass, electricity, or heavy oil based on regional pricing.
• Installation Space – Consider the available footprint and required maintenance clearance.
• Environmental Regulations – Ensure the selected boiler complies with local NOx and emission standards.

Frequently Asked Questions (FAQ)

1. What is the difference between a fire-tube boiler and a water-tube boiler?

In a fire-tube boiler, hot combustion gases travel inside the tubes while water surrounds them. In a water-tube boiler, water flows inside the tubes and hot gases circulate around them. Water-tube boilers are better suited for high-pressure and high-capacity industrial applications.

2. Why is water treatment important for steam boilers?

Without proper treatment, minerals dissolved in water create scale deposits inside the boiler. Scale reduces heat transfer efficiency, increases fuel consumption, and may eventually damage the pressure vessel.

3. How long does an industrial steam boiler typically last?

With proper maintenance, regular inspections, and correct water treatment, a high-quality industrial steam boiler can remain in service for 20–35 years or even longer.

4. How often should a steam boiler be inspected?

Professional inspections are generally recommended at least once every year. Daily operating checks and routine preventive maintenance should also be carried out by qualified personnel.
